Cabin Audio / Video

Key Specifications:

• Superb quality TFT colour display
• Flat panel display
• Low power
• Easy installation Seat Back, Seat Arm or Overhead
• Cordless earphones for audio
• Wide choice of video source using small format VCR in PAL/NTSC/SECAM formats
• Single or multi-channel
• PA Override
• Integrated with Infra Red Audio Stereo Cordless Music System (CPT 1800)
• Installation design and approvals on Commuter / Regional's

Applications:

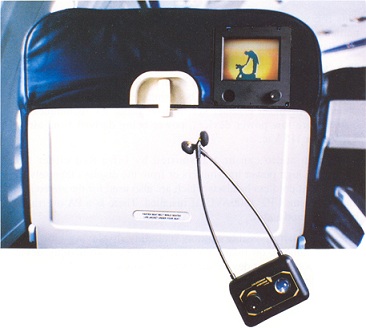

This IFE video system can be configured to best meet the needs of a particular operator and aircraft type. The system design allows ease of installation, high reliability and ease of maintenance.

The video players are ruggedized and available to play PAL / NTSC / SECAM formats on both VHS and Video 8 tapes. Video distribution is by single wire for both single channel and multi-channel systems. The multi-channel system uses cable TV techniques. The displays are low power devices, power being derived from aircraft +28Vdc or 115Vac.

The video audio can be transmitted by Infra Red either from distributed high power transmitters or from the displays themselves to light weight cordless headsets which are also used for the stereo audio music system, CPT 1800C, if installed. There is a PA override on both video and audio.

There are many possible options including displaying video from viewing camera, on board TV tuner, moving map display device, safety announcement device and thermal images.

Caledonian Airborne Systems reserves the right to make changes in specification or improvements without notice.
